win10虚拟光驱装载img镜像时提示硬盘映像未初始化,包含无法识别的分区...如何解决?

  • 内容
  • 评论
  • 相关

win10虚拟光驱装载img镜像时提示硬盘映像未初始化,包含无法识别的分区...如何解决?

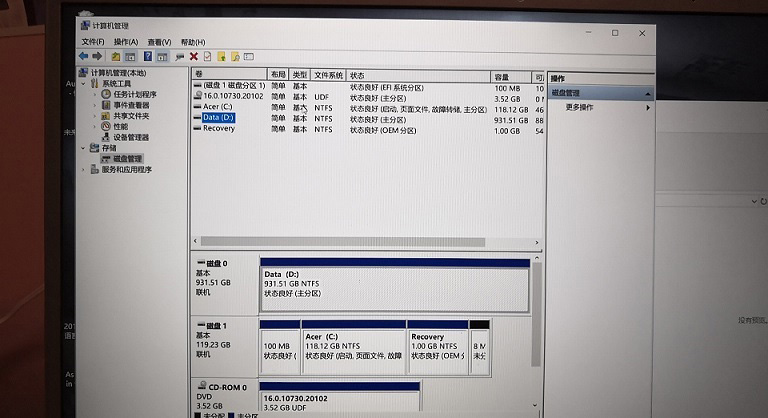

如下图所示:

win10虚拟光驱无法装载文件

win10虚拟光驱在装载img文件时提示“磁盘映像未初始化,包含无法识别的分区,或包含尚未分配驱动器号的卷。请使用磁盘管理管理单元确保磁盘、分区和卷处于可用状态。”碰到这个问题该如何解决呢?

首先找到导致这个问题的原因:

通过一个个排查,发现虽然在文件资源管理器中没有加载win10虚拟光驱CD-ROM,但在磁盘管理器中已经出现,同时没有分配磁盘盘符,无磁盘盘符也是导致文件资源管理器中没有显示的原因。

win10虚拟光驱无法装载文件

通过设置一个磁盘盘符,在文件管理器中能够正常显示,也能够正常打开这个虚拟光驱加载的文件/文件夹,说明这个虚拟光驱是工作正常的。然后小编通过右键点击虚拟光驱-弹出,然后就没有了。然而,再次装载这个img,却仍旧报错。重启电脑,在磁盘管理器中仍旧存在。。说明在注册表中存在相关的装载信息,而这个装载信息在电脑启动时会自动加载。

本文以office的img镜像安装包为例,通过观察磁盘管理器可以看到,CD-ROM有一个磁盘盘名,16.0.10730.20102,该名称是虚拟光驱装载文件时自动生成的名称。我们可以以此为入口点,打开注册表,通过注册表搜索磁盘盘名“16.0.10730.20102”,最终发现位于

HKEY_LOCAL_MACHINE\SOFTWARE\Microsoft\Windows\CurrentVersion\Installer\UserData\S-1-5-18\Products\

HKEY_LOCAL_MACHINE\SOFTWARE\Microsoft\Windows\CurrentVersion\Uninstall\

下有相关的注册表信息:

Windows Registry Editor Version 5.00

[HKEY_LOCAL_MACHINE\SOFTWARE\Microsoft\Windows\CurrentVersion\Installer\UserData\S-1-5-18\Products\00006109F80000000100000000F01FEC]

[HKEY_LOCAL_MACHINE\SOFTWARE\Microsoft\Windows\CurrentVersion\Installer\UserData\S-1-5-18\Products\00006109F80000000100000000F01FEC\Features]
"WixSwidTag"="J1LTX[V[iBJ@9to9E0E8"
"Click2RunCRT"=".u*T9l]z`4(PYqFPCrIey6?qsgmA^58hny0Bbb29nSr?]`o7k6Rz'?Wxzihbh`CF]]mxi7hNqs74L'}rgp2F[)xX44zq]TpEA47ktWf_!Nz6978].Jy-?0[E"
"Click2RunCRT64"="Q@`5$bDfo3g+8jHSXC7leaNZb~(v&7G]{EE34p!c.Jh*.eFp{3)pT1i_na^$+Av-IDy%i5FP2-tk%f.yR@A=5dH525Iu@,rZe1(C*b6Vl.S%]4Ur4svp2=j]"
"OSpp_nwm"="P9CF]2rkx@M=b+!Cakg6%IUba2Mm1?@yOuIV.7=m8GnBR!F`39)m,rG^1k$h3$SqFmHxf9VHQNe,zV8(fy@?0m7}x@8gFLmsMjfr&SVToq(ms?cxXO05Y]vmm2.L9^V6S@574I7iMU4y"
"OSpp64"="%@CB[CB*y@`GFDZZoPPRojM+mex&A=cFB4arkW}tvQe(D%K``9VpubvCGcje"
"OSpp64_Core"="!Y8J'2Mi$A!9JyHVKvZ8.uvn]F*c^8TWbkmNVj&4F,[Q[w~xi@%Yx`t8aqg-{oGdFLW{G@@m0_%Qp1Pkj_sAcMC[5?*`)H_WPreYWVn]DcD}$=I3Sk-)eNIm"
"AppVSubscriptionHeartbeat"="1Cl-??v{'?x.*M-N(Q9`)Z&wPKt[.?f))*.d1ZQb"

[HKEY_LOCAL_MACHINE\SOFTWARE\Microsoft\Windows\CurrentVersion\Installer\UserData\S-1-5-18\Products\00006109F80000000100000000F01FEC\InstallProperties]
"LocalPackage"="C:\\WINDOWS\\Installer\\301ddcd1.msi"
"AuthorizedCDFPrefix"=""
"Comments"=""
"Contact"=""
"DisplayVersion"="16.0.10730.20102"
"HelpLink"=""
"HelpTelephone"=""
"InstallDate"="20191016"
"InstallLocation"=""
"InstallSource"="C:\\Program Files (x86)\\Microsoft Office\\root\\Integration\\"
"ModifyPath"=hex(2):4d,00,73,00,69,00,45,00,78,00,65,00,63,00,2e,00,65,00,78,\
00,65,00,20,00,2f,00,49,00,7b,00,39,00,30,00,31,00,36,00,30,00,30,00,30,00,\
30,00,2d,00,30,00,30,00,38,00,46,00,2d,00,30,00,30,00,30,00,30,00,2d,00,31,\
00,30,00,30,00,30,00,2d,00,30,00,30,00,30,00,30,00,30,00,30,00,30,00,46,00,\
46,00,31,00,43,00,45,00,7d,00,00,00
"Publisher"="Microsoft Corporation"
"Readme"=""
"Size"=""
"EstimatedSize"=dword:00000be8
"SystemComponent"=dword:00000001
"UninstallString"=hex(2):4d,00,73,00,69,00,45,00,78,00,65,00,63,00,2e,00,65,00,\
78,00,65,00,20,00,2f,00,49,00,7b,00,39,00,30,00,31,00,36,00,30,00,30,00,30,\
00,30,00,2d,00,30,00,30,00,38,00,46,00,2d,00,30,00,30,00,30,00,30,00,2d,00,\
31,00,30,00,30,00,30,00,2d,00,30,00,30,00,30,00,30,00,30,00,30,00,30,00,46,\
00,46,00,31,00,43,00,45,00,7d,00,00,00
"URLInfoAbout"=""
"URLUpdateInfo"=""
"VersionMajor"=dword:00000010
"VersionMinor"=dword:00000000
"WindowsInstaller"=dword:00000001
"Version"=dword:100029ea
"Language"=dword:00000000
"DisplayName"="Office 16 Click-to-Run Licensing Component"

[HKEY_LOCAL_MACHINE\SOFTWARE\Microsoft\Windows\CurrentVersion\Installer\UserData\S-1-5-18\Products\00006109F80000000100000000F01FEC\Patches]
"AllPatches"=""

[HKEY_LOCAL_MACHINE\SOFTWARE\Microsoft\Windows\CurrentVersion\Installer\UserData\S-1-5-18\Products\00006109F80000000100000000F01FEC\Usage]
Windows Registry Editor Version 5.00

[HKEY_LOCAL_MACHINE\SOFTWARE\Microsoft\Windows\CurrentVersion\Uninstall\{90160000-008F-0000-1000-0000000FF1CE}]
"AuthorizedCDFPrefix"=""
"Comments"=""
"Contact"=""
"DisplayVersion"="16.0.10730.20102"
"HelpLink"=""
"HelpTelephone"=""
"InstallDate"="20191016"
"InstallLocation"=""
"InstallSource"="C:\\Program Files (x86)\\Microsoft Office\\root\\Integration\\"
"ModifyPath"=hex(2):4d,00,73,00,69,00,45,00,78,00,65,00,63,00,2e,00,65,00,78,\
00,65,00,20,00,2f,00,49,00,7b,00,39,00,30,00,31,00,36,00,30,00,30,00,30,00,\
30,00,2d,00,30,00,30,00,38,00,46,00,2d,00,30,00,30,00,30,00,30,00,2d,00,31,\
00,30,00,30,00,30,00,2d,00,30,00,30,00,30,00,30,00,30,00,30,00,30,00,46,00,\
46,00,31,00,43,00,45,00,7d,00,00,00
"Publisher"="Microsoft Corporation"
"Readme"=""
"Size"=""
"EstimatedSize"=dword:00000be8
"SystemComponent"=dword:00000001
"UninstallString"=hex(2):4d,00,73,00,69,00,45,00,78,00,65,00,63,00,2e,00,65,00,\
78,00,65,00,20,00,2f,00,49,00,7b,00,39,00,30,00,31,00,36,00,30,00,30,00,30,\
00,30,00,2d,00,30,00,30,00,38,00,46,00,2d,00,30,00,30,00,30,00,30,00,2d,00,\
31,00,30,00,30,00,30,00,2d,00,30,00,30,00,30,00,30,00,30,00,30,00,30,00,46,\
00,46,00,31,00,43,00,45,00,7d,00,00,00
"URLInfoAbout"=""
"URLUpdateInfo"=""
"VersionMajor"=dword:00000010
"VersionMinor"=dword:00000000
"WindowsInstaller"=dword:00000001
"Version"=dword:100029ea
"Language"=dword:00000000
"DisplayName"="Office 16 Click-to-Run Licensing Component"

由于未及时截图,这里IT技术资料分享网小编就把备份的注册表信息贴出来。

通过观察其对应的注册表项可以发现,就是为所要找的装载的img镜像在注册表中的关键信息:

HKEY_LOCAL_MACHINE\SOFTWARE\Microsoft\Windows\CurrentVersion\Installer\UserData\S-1-5-18\Products\00006109F80000000100000000F01FEC

HKEY_LOCAL_MACHINE\SOFTWARE\Microsoft\Windows\CurrentVersion\Uninstall\{90160000-008F-0000-1000-0000000FF1CE

项及其子项下的所有注册项。

接下来就是执行清除操作:

先打开磁盘管理器,重启后被加载的虚拟光驱之前设置的磁盘盘符会自动消失,点击下面的CD-ROM区,为其分配一个磁盘盘符,然后进入到文件管理器中,点击对应的虚拟光驱,执行弹出操作,最后定位到刚刚找到的两个注册表项位置:

HKEY_LOCAL_MACHINE\SOFTWARE\Microsoft\Windows\CurrentVersion\Installer\UserData\S-1-5-18\Products\00006109F80000000100000000F01FEC

HKEY_LOCAL_MACHINE\SOFTWARE\Microsoft\Windows\CurrentVersion\Uninstall\{90160000-008F-0000-1000-0000000FF1CE

将其对应的项及其子项下的所有注册表信息删除。由于注册表十分重要,如果你对注册表不了解,一定要先备份再删除。

最后重启电脑,解决问题。
